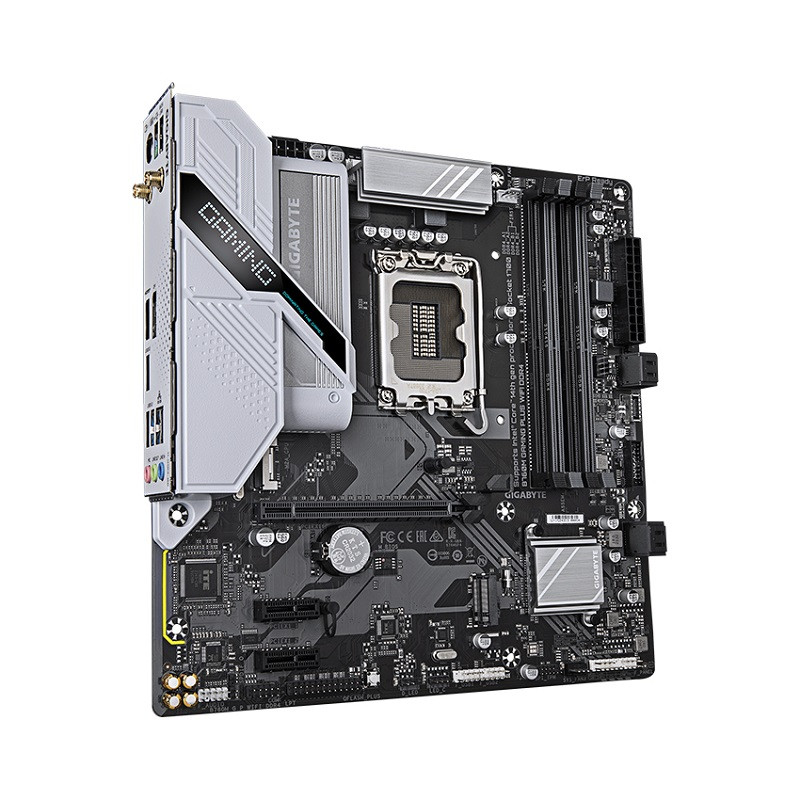

Main Gigabyte B760M Gaming Plus Wifi DDR4

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

B760M GAMING PLUS WIFI DDR4

CPU hỗ trợ

Intel

Chipset

B760

RAM hỗ trợ

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Khe cắm mở rộng

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:
- 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1

Ổ cứng hỗ trợ

CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x parallel port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (2T2R)
1 x DisplayPort
1 x HDMI port
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
